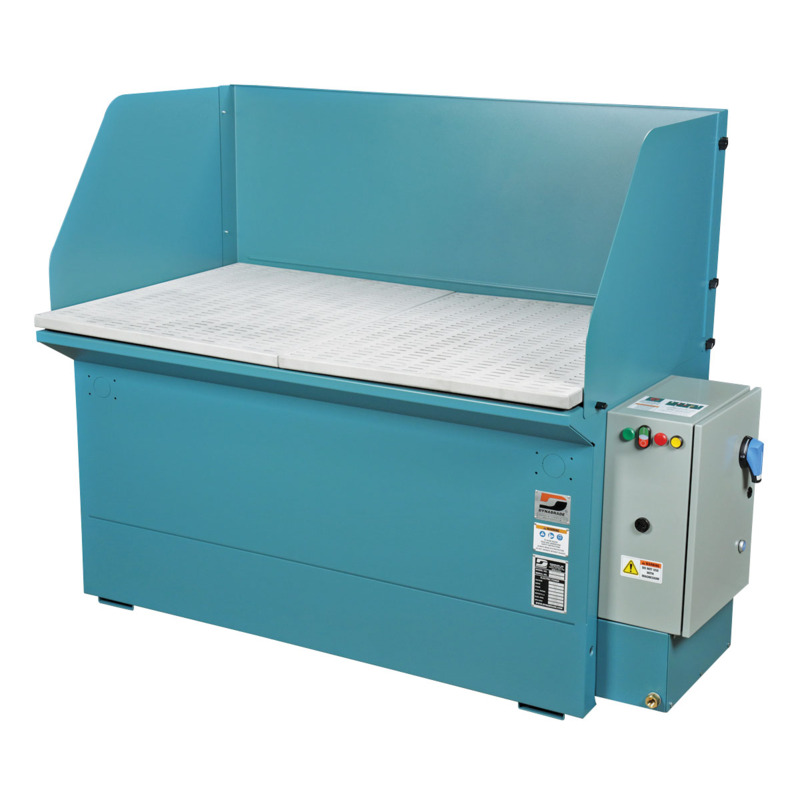

36" W x 60" L (914 mm W x 1,524 mm L) Metal Capture Downdraft Table
230 V (AC), 3 Phase, 60 Hz, Side Exhaust,
-
Meets These NFPA Requirements: Interlock Pneumatic Valve with Blower and Time-Delay. Tools operate only when Downdraft Table is running; Class II, Group E Explosion-Proof Motor; Aluminum Top for Non-Spark Work Surface; Non-Spark Aluminum Blower on Collector?s Clean-Air Side; Automatic Water Level Control; Vented Sump (Main Tank); Low Voltage Control; Lockable Fused Power Disconnect
-
Ideal for capturing aluminum and titanium dust. Working area of 36" wide x 60" long accommodates large work pieces. Includes casters for easy maneuvering; casters also lock securely into place.
-
Choice of models that direct exhaust down, up, or to the side. Overload protection / fused disconnect for safety.
-
Sturdy 12-gauge construction. Includes shields for both sides and back of table.
-
Workpiece capacity / load rating of 2,000 pounds. 42 gallon capacity; 1,800 CFM at 4" static pressure. Easy system maintenance. No paper filters to replace!
| hp |
3 hp
|
|---|
| Height (in) |
33 in
|
|---|
| Height (mm) |
838 mm
|
|---|
| Length (in) |
70 in
|
|---|
| Length (mm) |
1778 mm
|
|---|
| Weight (lb) |
600 lb
|
|---|
| Weight (kg) |
272.16 kg
|
|---|
| Width (in) |
36 in
|
|---|
| Capacity [gal] |
42
|
|---|
