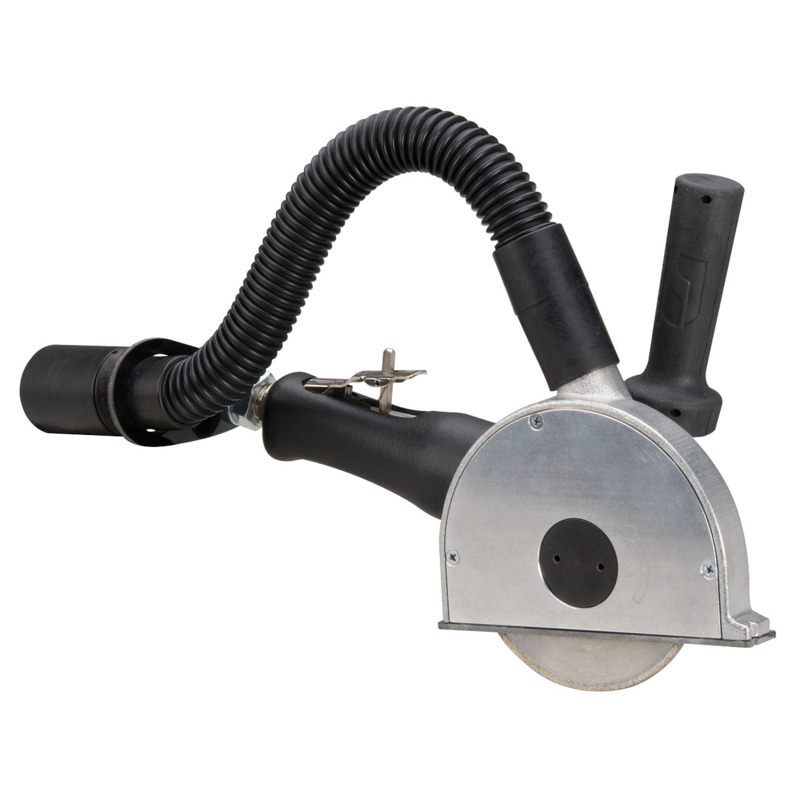

5" Vacuum Cut-Off Tool, 1.3Hp,
12K RPM
-
Tool accepts optional 5" (127 mm) dia. Diamond Cut-Off Wheels with 3/4" (19 mm) dia. center hole. Adjustable wheel guard has vacuum port 1-1/4" (32 mm) outside dia. that diverts airborne dust and debris to optional vacuum source. Excellent for efficient cutting with capture of dust and debris. Ideal for use on fiberglass and composites.
-
Non-marring composite base is removable to utilize maximum blade depth of 1-3/16" (30 mm). Optional composite base is available for scoring. Shroud/Guide Plate design allows cutting as close as 1/8" (3 mm) to leading edge of work piece.
-
Wick Lube System extends gear life with simple lubrication. Exhaust system rotates 360 degrees to ensure exhaust is always directed away from operator. Safety-lock throttle lever is included.
-
Tool includes 95848 Gear Oil and 95541 Gear Oil Gun.
| hp |
1.3 hp
|
|---|
| Max. RPM |
12000
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Hose I.D. |
|---|
| Vacuum Type |
|---|
| Motor Type |
|---|
| Height (in) |
8 in
|
|---|
| Height (mm) |
213 mm
|
|---|
| Length (in) |
15 in
|
|---|
| Length (mm) |
386 mm
|
|---|
| Weight (lb) |
7.3 lb
|
|---|
| Weight (kg) |
3.31 kg
|
|---|
| Width (in) |
10 in
|
|---|
| Tool Style |
Right Angle
|
|---|
