DynaPen Reciprocating Tool, 3 mm Collet
14,000 SPM, .007" (.018 mm) SL, In-Line 360 Degree Swivel
-
14,000 strokes per minute; .007" stroke length (.018 mm); precision removal resulting in less risk of gouging delicate parts; less aggressive than a Die Grinder; Lightweight & Faster than hand-filing.
-

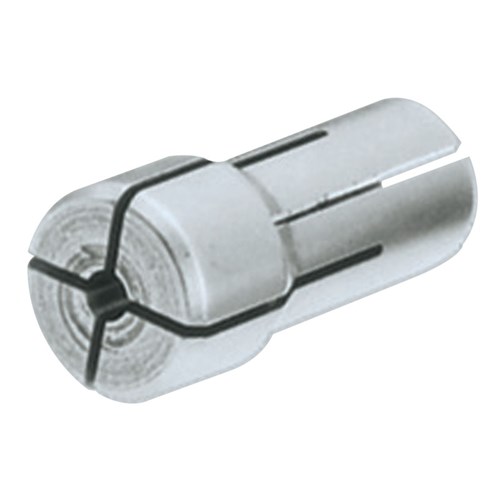

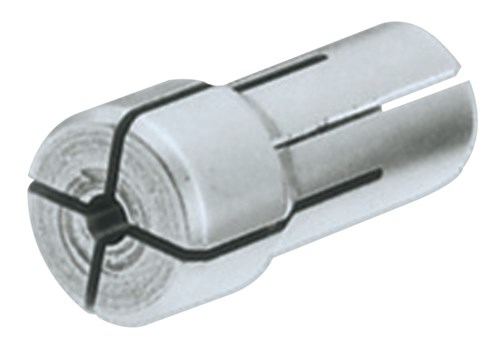

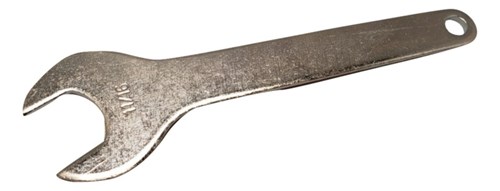

Only one included wrench required; easier to change files; Easy grip rubber sleeve; Includes 3 mm collet insert. Accepts 1/16", 3/32", 1/8" collet inserts (sold separately).
-
Lubrication is not recommended during operation. Lubrication is ONLY recommended during storage.
-
Easy grip rubber sleeve makes it easy to hold tool securely. Especially important when using tool for precision removal on delicate parts. In-line 360-Degrees Swivel is incorporated into the airline. This allows more maneuverability for the operator on contoured parts.
-

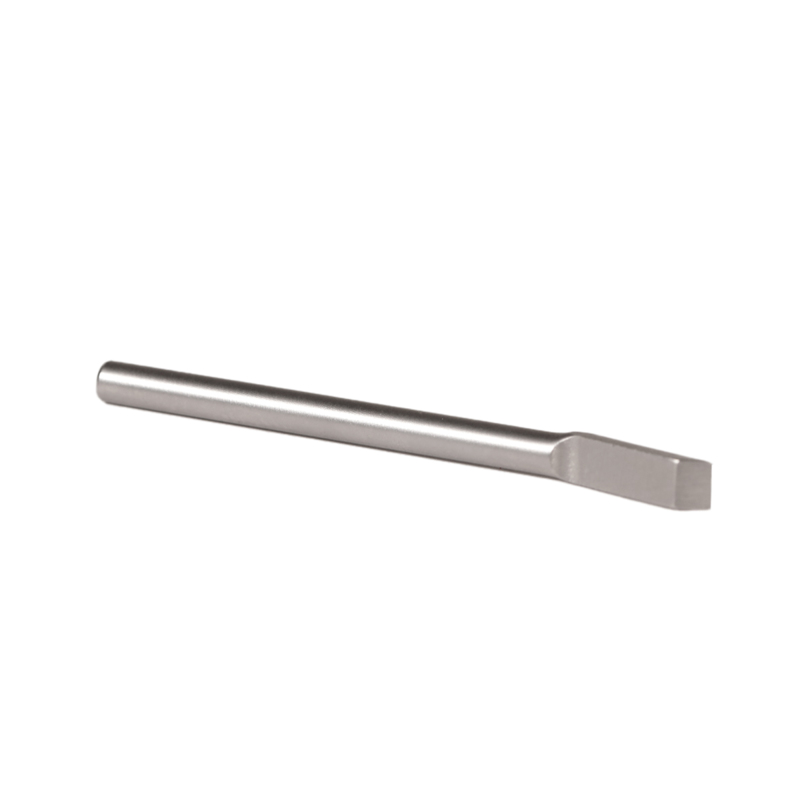

In-line filter is included to prevent debris from entering the tool through the airline. Scribes and Chisels are made of high carbon steel that is heat-treated and tempered to a hardness of 62 Rockwell.
| Length (mm) |
79 mm
|
|---|
| Width (mm) |
152 mm
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Height (in) |
1 in
|
|---|
| Height (mm) |
24 mm
|
|---|
| Hose I.D. |
|---|
| Length (in) |
3 in
|
|---|
| Vacuum Type |
|---|
| Width (in) |
6 in
|
|---|
| Tool Style |
Straight-Line
|
|---|
| Weight (kg) |
0.14 kg
|
|---|
| Weight (lb) |
0.31 lb
|
|---|
