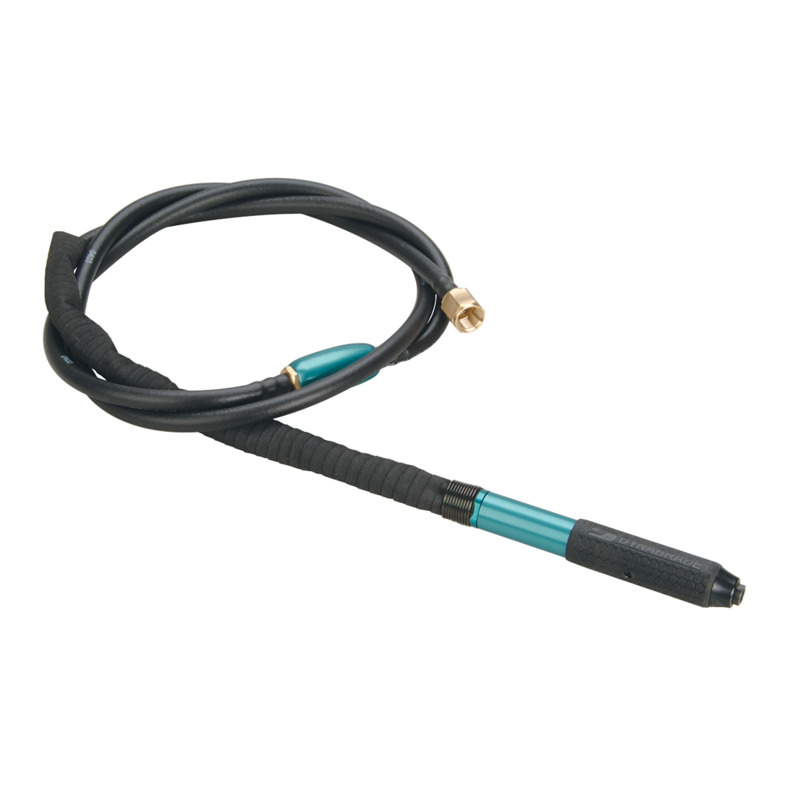

Pencil Grinder, 60K RPM, Vaned
3mm Insert
-

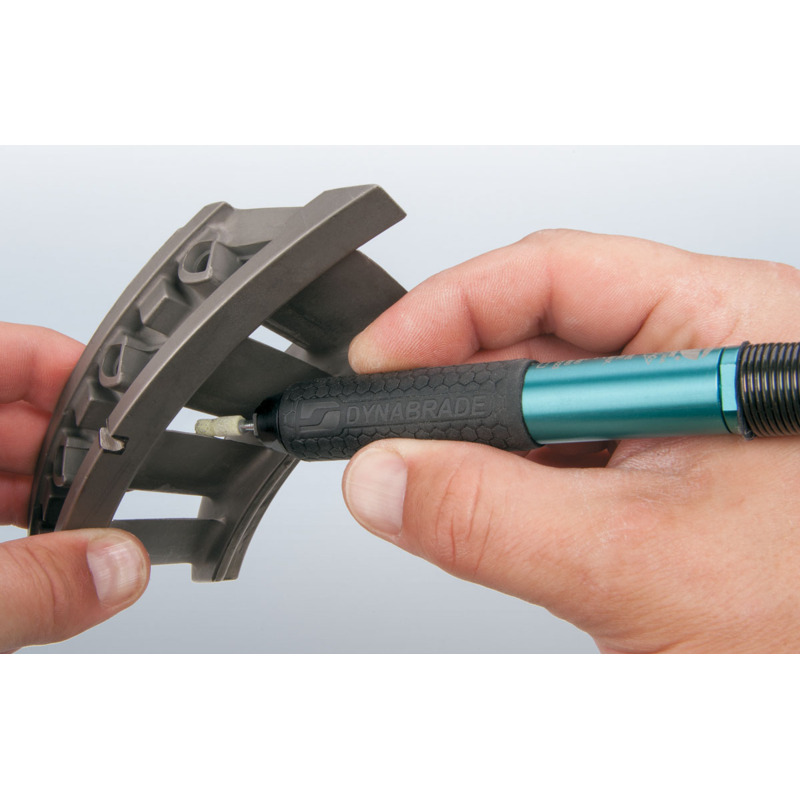

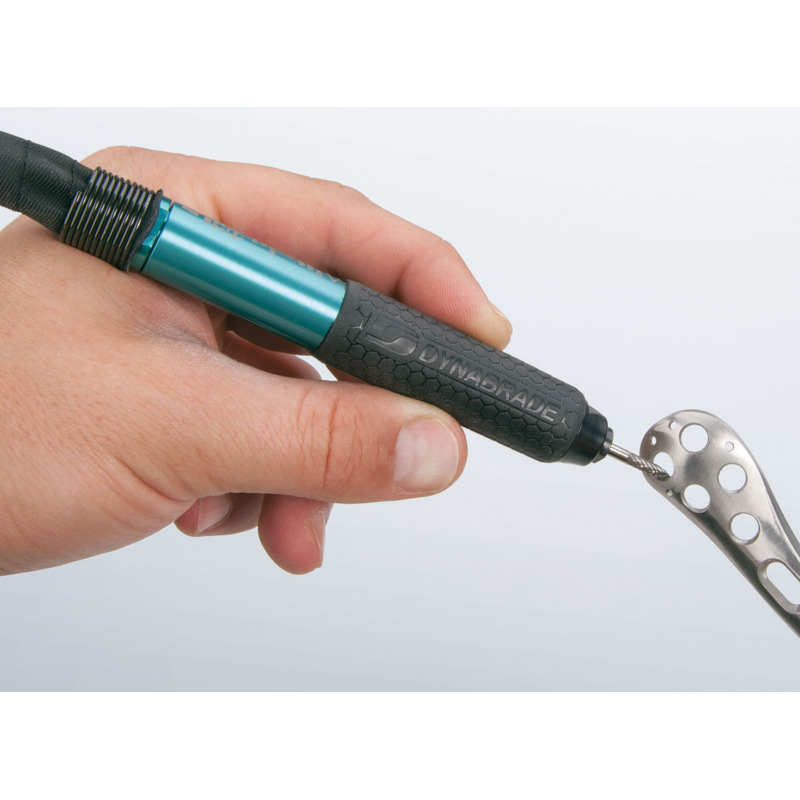

Dynabrade's Variable Speed Pencil Grinder offers precision deburring, finishing and engraving, with easily adjustable speed to suit each application. This is an essential tool for turbine blade manufacturers, tool & die shops, machine shops, investment castings, jewelry, medical implants, composites and more!
-
High-Quality Air Line; 1/4" (6 mm) in diameter and 5 feet (1.5 m) in length. Over-hose Assembly; Helps direct air and excess oil away from operator - 12" (305 mm) in length. Variable Speed Flow Control; Adjust your desired speed with dial, up to 60,000 RPM. Unlike roll valves, your speed stays set when turning tool off and on. One Touch Starts Tool at Desired Speed; Handy push-button for simple on/off operation. Tool comes on at same speed as when you shut it off!
-
Ergonomic Tactile Grip; Tactile, non-slip grip is insulated for comfortable use. Large Precision Bearings; Ensure longer tool life than competitive models. Spindle Lock Allows Easy Collet Tightening; With thru-hole for quick accessory change. No struggling with two wrenches! Low Collet Run-Out; Run-out of less than .003 minimizes vibration and ensures high-quality cut.
-
Model accepts optional collet inserts: 1/16" (51760) and 3/32" (51674).
| hp |
0.1 hp
|
|---|
| Max. RPM |
60000
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Hose I.D. |
|---|
| Vacuum Type |
|---|
| Height (in) |
4 in
|
|---|
| Height (mm) |
108 mm
|
|---|
| Length (in) |
5 in
|
|---|
| Length (mm) |
114 mm
|
|---|
| Weight (lb) |
1 lb
|
|---|
| Weight (kg) |
0.45 kg
|
|---|
| Width (in) |
7 in
|
|---|
| Tool Style |
Straight Line
|
|---|
