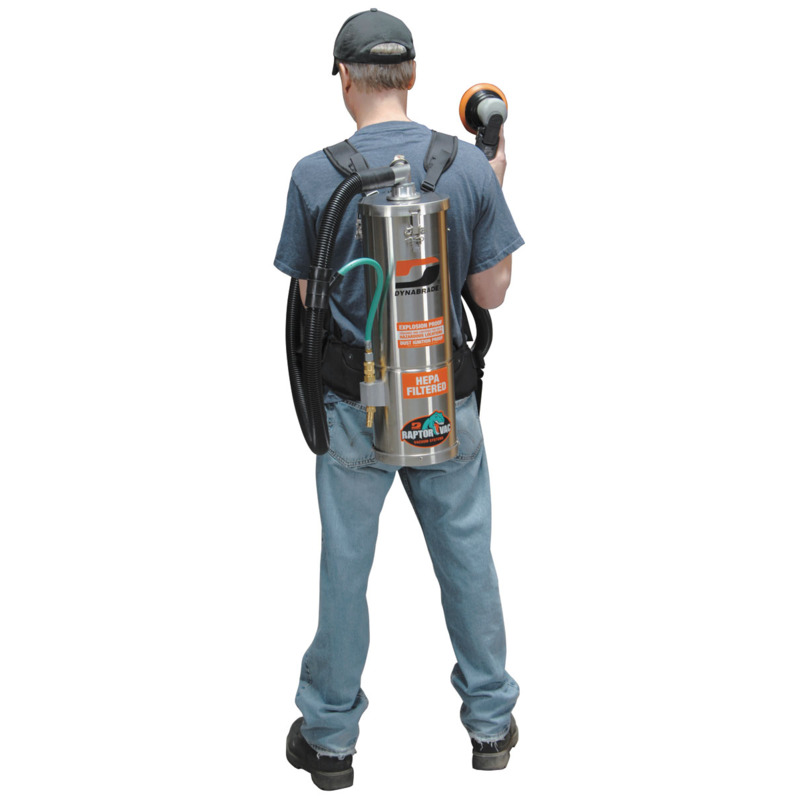

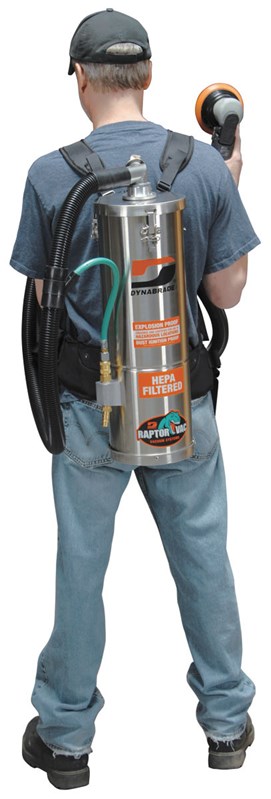

Raptor Vac Pneumatic Vacuum - Backpack Style
1.5 Gal. (6 L), Division 1, Stainless Steel, Conductive, N. America
-
Pneumatic Portable Vacuum For use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron.
-

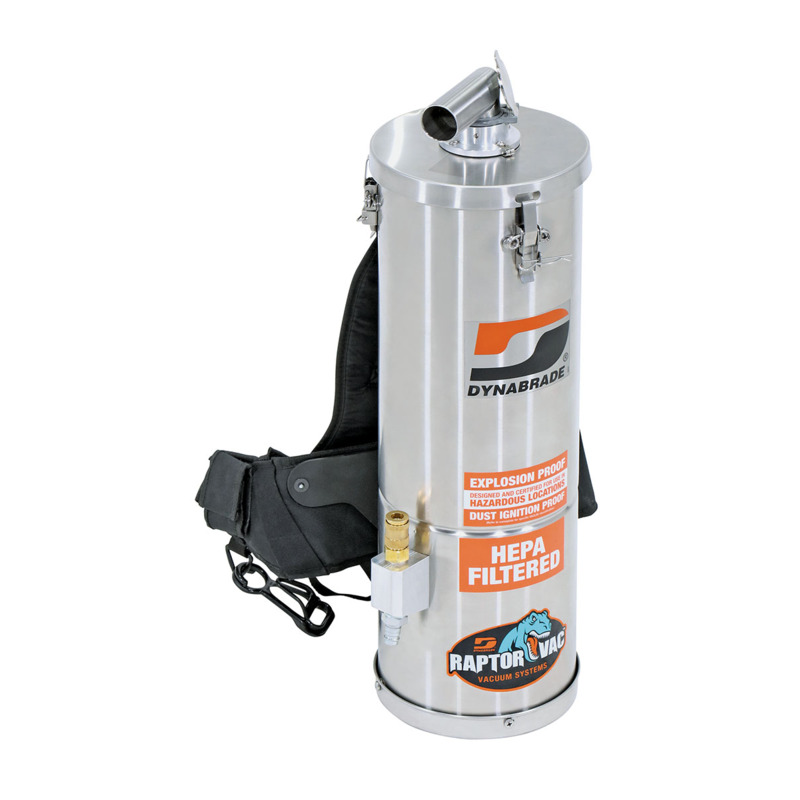

Stainless steel recovery tank (SAE 304). Easy recovery bag access. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with ergonomic Back-Pack Harness Conductive Cleaning Kit available separately
-
Designed For Use In: Class I, Division I, Groups A, B, C, D T6 Class II, Division I, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NFPA 70) European Certifications: ATEX, Third Party Certified, CE EX II 2 GD c IIC T6 (85° C)
-
Vacuum for use in: Group A: atmospheres, containing acetylene Group B: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group C: atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air Group D: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode Group E: atm...
-
Included: o One 8' (6 m) Conductive Coaxial Hoses with Integrated Air Lines o One composite coupler o One vacuum hose swivel o Conductive recovery bag o HEPA H14 Filter with 99.995% efficiency on0.3 micron o Ergonomic Back Pack Harness
| Accy. Max. Air Flow SCFM (LPM) |
35 SCFM (991 LPM)
|
|---|
| Sound Power dB[A] |
68
|
|---|
| Height (in) |
16 in
|
|---|
| Height (mm) |
406 mm
|
|---|
| Length (in) |
30 in
|
|---|
| Length (mm) |
762 mm
|
|---|
| Weight (lb) |
32 lb
|
|---|
| Weight (kg) |
14.51 kg
|
|---|
| Width (in) |
18 in
|
|---|
| Air Pressure [PSIG] |
|---|
| Capacity [gal] |
1.5
|
|---|
| Water Static Lift |
80" / 203 cm / 199 mbar
|
|---|
