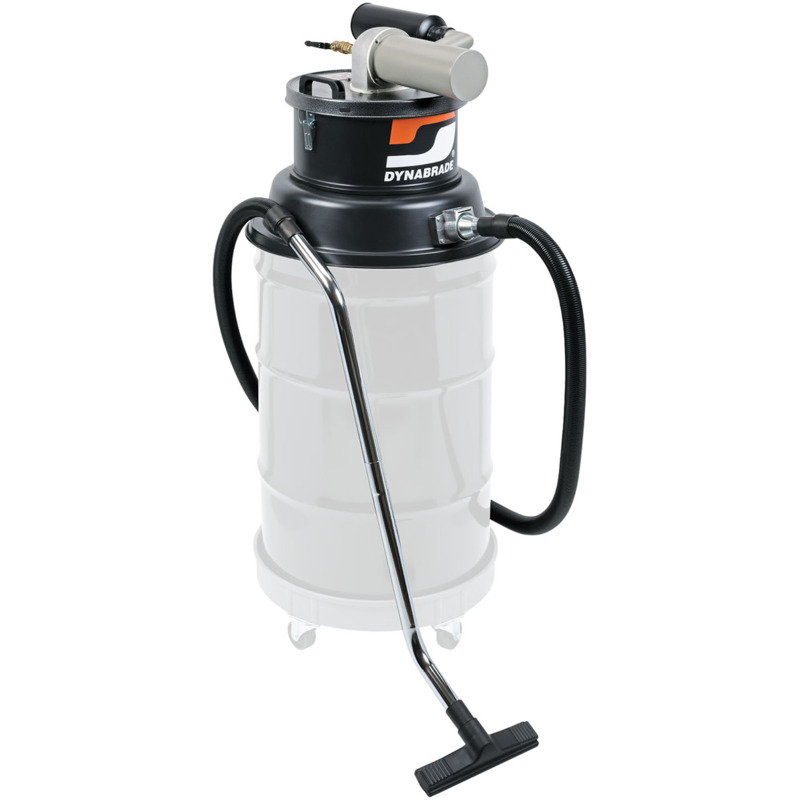

RaptorVac Pneumatic DrumVac Kit, Single Operator, General Purpose

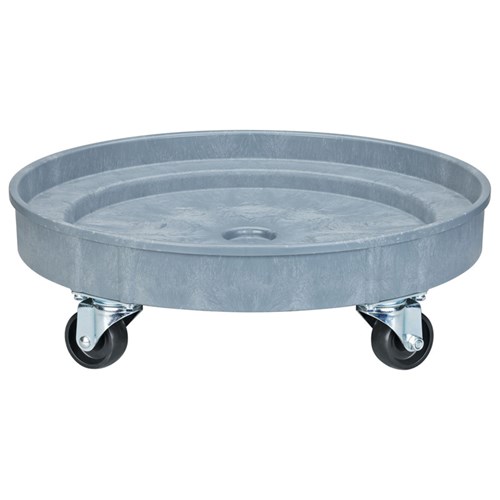

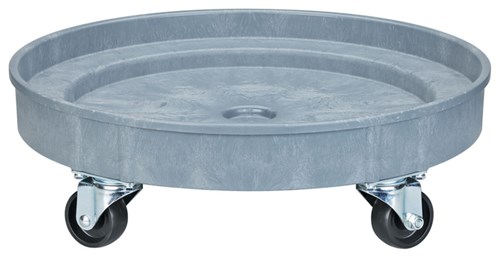

For 55 Gallon (208 L) Drum-Wheel Base Sold Separately, Dry Heavy Chip
-

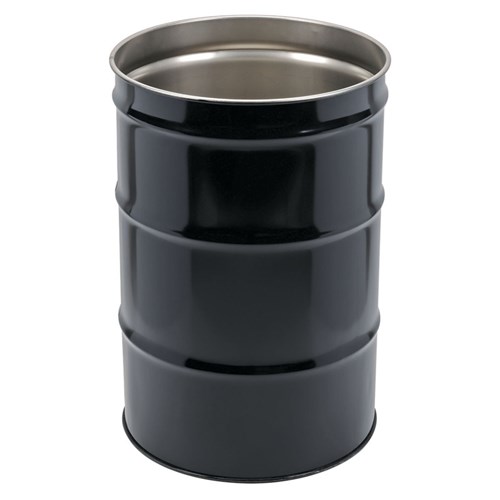

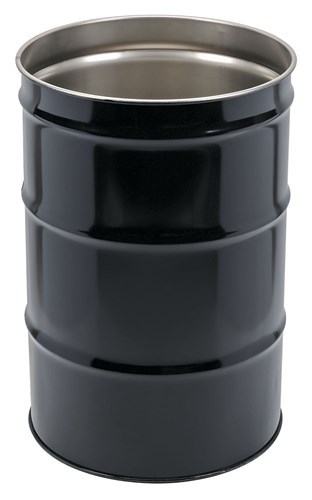

Dynabrade’s family of DrumVac Kits are a multi-industry clean air solution with fully integrated features designed to keep an operator working without being concerned with the arduous task of changing out a vacuum bag in high collection scenarios. Used in conjunction with a 55-gallon drum (sold separately), this system lends itself to one of the largest capacity portable dust and dry chip collection systems in the industry.
-
55 Gallon drum equates to large collection capacity. No bag change-out requirements. Anti-Static clean up kit eliminates static discharge to operator.
-

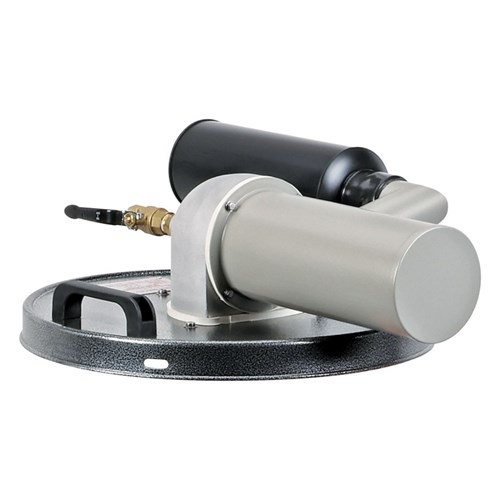

High powered, pneumatic vacuum head provides superior performance for general purpose dry collection of heavy chips.
-
Material Collect Dry Chip Types: Wood, Metal, Fiberglass, Solid surface, Composites. Please consult factory for additional qualified materials.
-

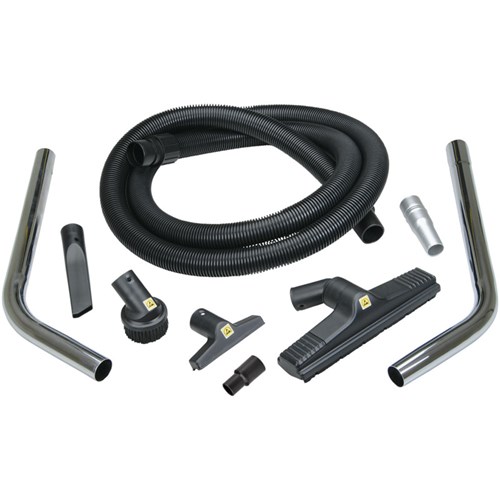

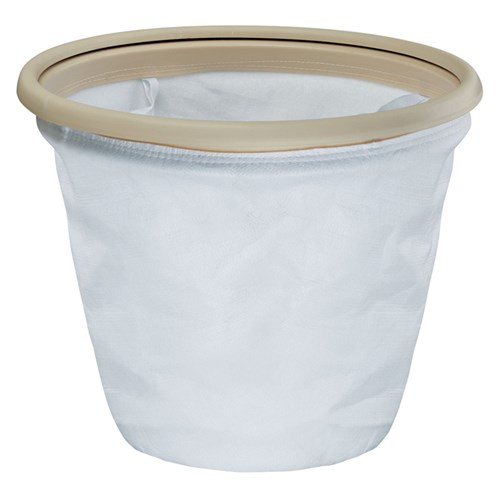

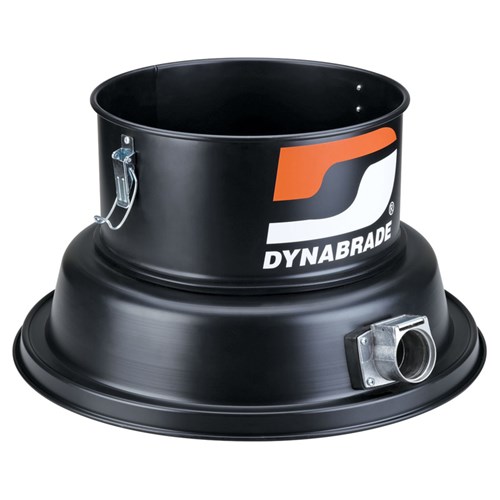

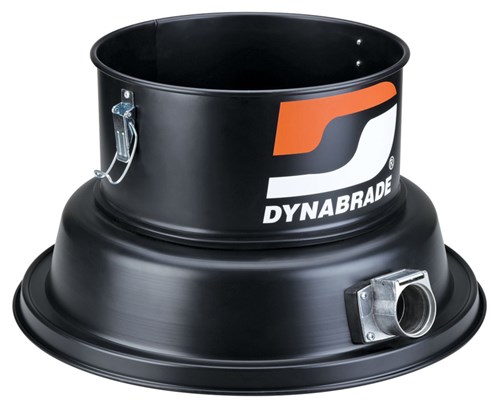

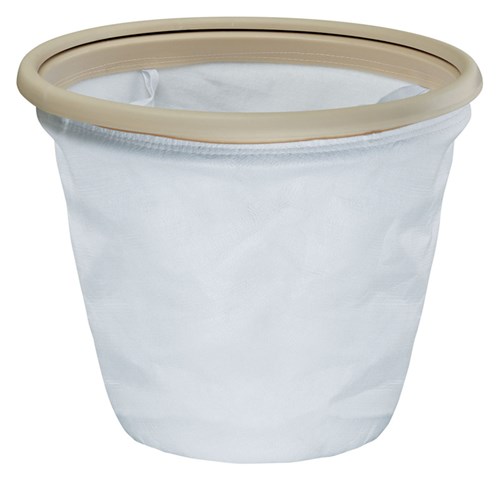

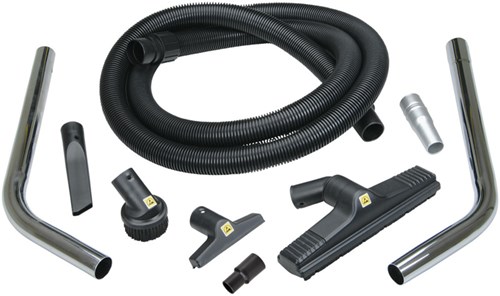

What’s In The Box: Complete Kit with Vacuum-head, dry filter, interface ring and supporting general purpose cleaning kit. Collateral technical & safety documentation.
| Length (mm) |
635 mm
|
|---|
| Width (mm) |
635 mm
|
|---|
| Capacity [gal] |
55
|
|---|
| Height (in) |
21 in
|
|---|
| Height (mm) |
533 mm
|
|---|
| Length (in) |
25 in
|
|---|
| Micron |
0.3
|
|---|
| Motor Type |
|---|
| Width (in) |
25 in
|
|---|
| Water Static Lift |
170 in
|
|---|
| Weight (kg) |
17.35 kg
|
|---|
| Weight (lb) |
38.25 lb
|
|---|
