Ref : 64902

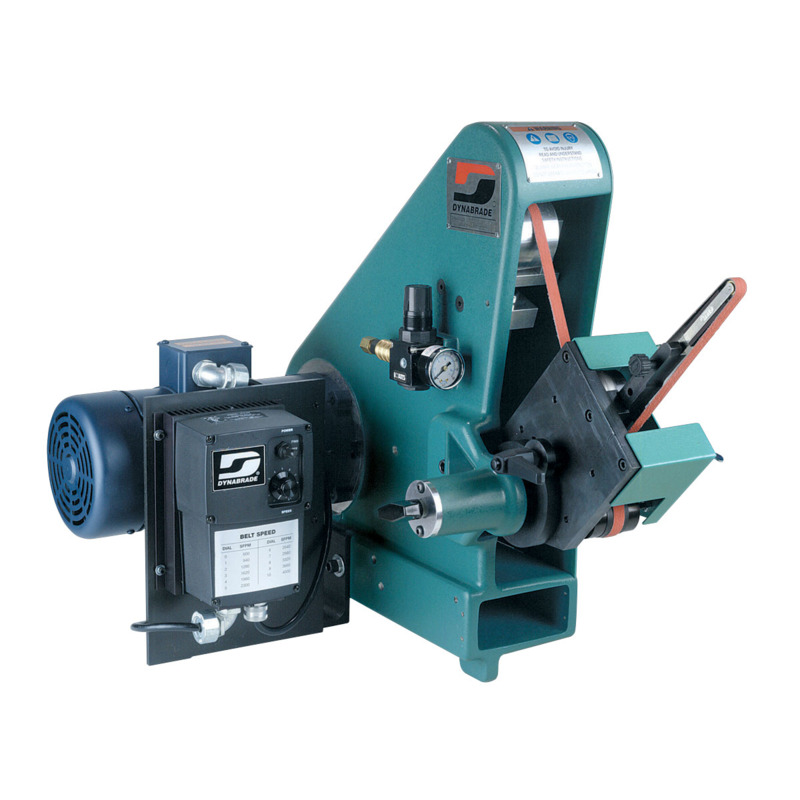

Variable Speed Versatility Grinder

3 hp, 230 V (AC), 3 Phase, 50/60 Hz, 2,000-8,000 SFPM, 1/4"-2" W x 72" L (6-51 mm x 122 cm) Belts

$9,592.00 Tax Excl.
Share

  • Versatility Grinder powers 72" abrasive belts in widths from 1/4" to 2", to provide a wide variety of finishing solutions.Ideal for use on castings and forgings, turbine blades, medical implants, investment castings and more.

  • Ideal for use on castings and forgings, turbine blades, medical implants, investment castings and more. Adjustable air belt tensioning provides constant control. Pivoting arm assembly for operator comfort.

  • Unit has includes efficient through-housing 4" vacuum port for dust control with optional vacuum scoop (64932).

Length (mm)
838 mm
Width (mm)
1219 mm
Frequency [Hz]
60
50
Height (in)
22 in
Height (mm)
559 mm
hp
3 hp
Length (in)
33 in
Max. SFPM
2008000
Width (in)
48 in
Voltage
240
Weight (kg)
54.43 kg
Weight (lb)
120 lb
Current Manual (Parts Page) PD07.22R
Previous Manual (Parts Page) #1 PD07.22
Previous Manual (Parts Page) #2 PD03.21
