Wrenchless Pencil Grinder, 35K
RPM, 3/32"
-

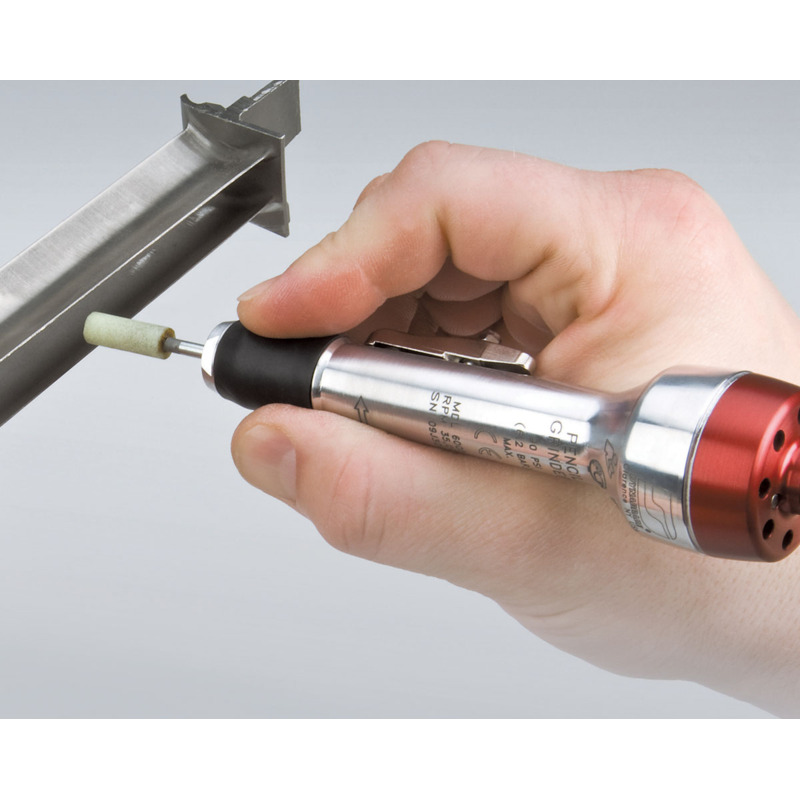

Dynabrade?s Wrenchless Pencil Grinder combines precision deburring, engraving and finishing with an exciting new feature: a convenient lever for changing your accessory in seconds! A true time-saver for high production workplaces such as jewelry manufacturers, tool & die shops, aerospace industries and more.
-
High-efficiency turbine-driven air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor controlled by patented governor, providing constant tool speed under load. Tool housing has non-slip rubber grip for additional control. Tactile cues on shaft end alert operator to rotating collet area. Quality high-speed bearings ensure consistent, reliable operation. 1/8" and 3/32" Collets are interchangeable within each model.
-

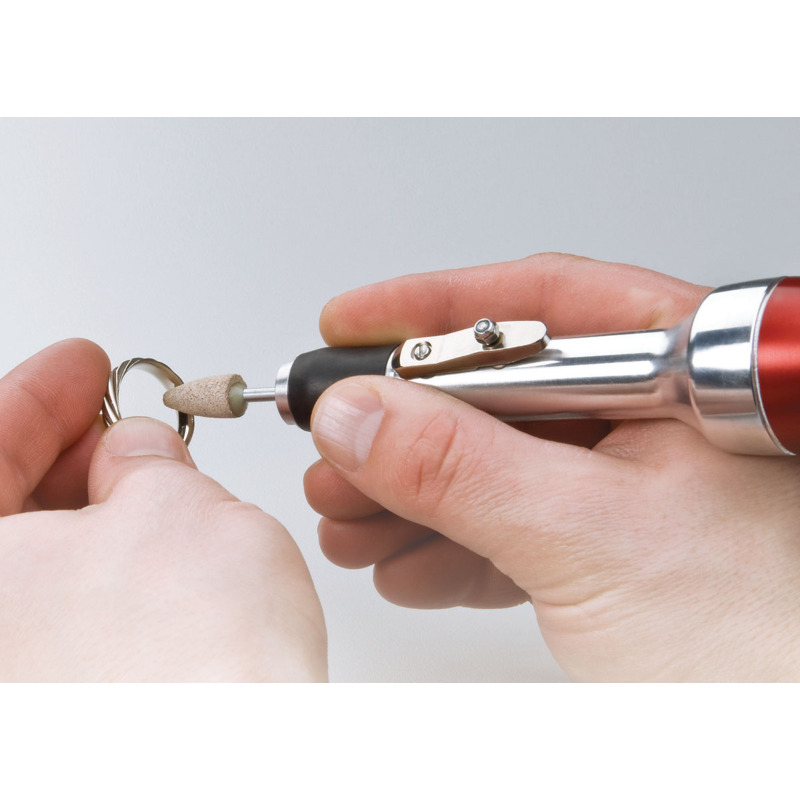

Accepts variety of accessories; Powers carbide burrs and mounted points, sold separately. Quick-Change Lever; Turn lever outward 90 degrees to open collet insert and easily replace accessory.
-

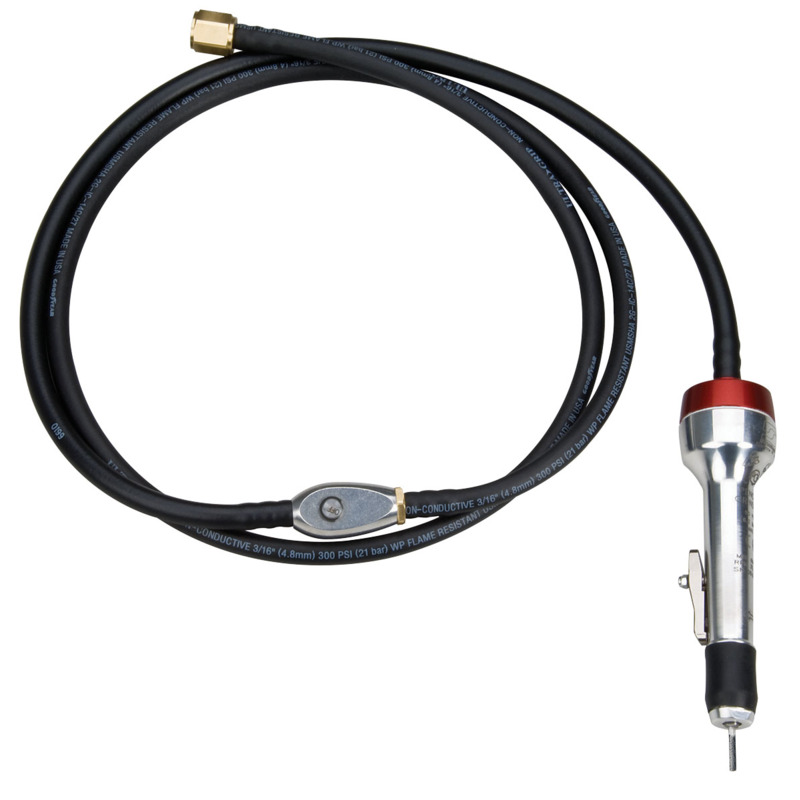

Rapid-Stop Brake; Built-in brake stops tool motorwithin one second. Built-In Swivel; Provides 360 degrees of maneuverability for air line. High-Quality Air Line; 1/4" (6 mm) in dia. and 6 feet (1.82 m) in length.
-
One-Touch Operation; Handy switch allows simple on/off operation.
| hp |
0.1 hp
|
|---|
| Max. RPM |
35000
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Hose I.D. |
|---|
| Vacuum Type |
|---|
| Motor Type |
|---|
| Height (in) |
2 in
|
|---|
| Height (mm) |
38 mm
|
|---|
| Length (in) |
5 in
|
|---|
| Length (mm) |
135 mm
|
|---|
| Weight (lb) |
1 lb
|
|---|
| Weight (kg) |
0.45 kg
|
|---|
| Width (in) |
7 in
|
|---|
| Tool Style |
Pencil Grinder
|
|---|
